Homelab: Raspberry Pi and Pi-hole

Homelab, Networking, Security / / By

I very much enjoy my homelab projects, from VMware ESXi, Synology, FreeNAS, pfSense, MikroTik, Ubiquiti/Unifi, they all have played an important role in developing my skills in various facets of IT – networking, security, virtualization, storage, etc. I don’t use all of these technologies at the work place, but I do use the standard concepts and practices from each platform, which has been paramount to my learning. Out of all of these platforms, none for me has been as advantageous, economically cheap, or simple to implement for DNS filtering than Pi-hole on the Raspberry Pi. In my opinion, the benefits far exceed the time and costs, and I highly recommend this solution to any IT administrator/technicain or tech savvy users interested in implementing a DNS filter for their private network that is backed by an awesome development team and community of supporters, such as my self.

What is Pi-hole?

Simply put, Pi-hole is Linux based network-level advertisement and tracker blocking application. It can be installed on a Raspberry Pi, Linux machine (virtual machines included), and cloud implementations are also possible. Once installed, it can block advertisements and trackers for all devices on your entire network, simply point your devices DNS to the Pi-hole’s IP on your private network. Pi-hole is best known for blocking advertisements and trackers, but it is not restricted to these two categories alone, Pi-hole can block any DNS. For example, there are numerous DNS block lists available that can be added to the Pi-hole to block known malicious DNS addresses, and so it is not only about the convenience of blocking advertisements and trackers, but for security as well. Pi-hole comes with a polished web GUI, but access via terminal is available as well. I personally prefer the GUI for minor changes, but use the terminal for any large/sweeping changes or real-time monitoring, such as clearing the database, adding large amounts of DNS entries to the lists, or simply tailing the DNS logs.

A Polished Web Interface

As previously mentioned, Pi-hole utilizes a polished web interface that has developed over time with each release. Terminal access is available and I would recommend learning both. The entire installation is done via terminal, although it is wizard driven. I’ve taken a few screenshots with descriptions below.

A total of 65.5% of all traffic on my private network is blocked. Over one million domains in the blocklist (Malicious, Advertising, Trackers). Note the active vs. inactive hours on the graph, I can tell when my Wife woke up this morning - or when the in-laws came to visit...
A view of the Query Log. Microsoft is usually #1 on the block list due to telemetry. Note the domain in green "wifi-ctr.magichue.net", it's my automated LED lights for the home office. They communicate back to magichue.net, which integrates with my Google Home automation setup. "Ok, Google. Turn on office lights" etc.
This is important. Pi-hole v4.0 was released with FTLDNS and Unbound. By default, Pi-hole will act as a “forwarding” DNS server that will forward all unblocked traffic to an upstream DNS provider (Google, Level3, etc.). However, when using FTLDNS and Unbound, Pi-hole will act as your own local “recursive” DNS server. This is similar to running your own in-house/local Google or Cloudflare DNS server. Using Pi-hole as a recursive DNS server provides better security, since external DNS servers are no longer logging your traffic.

My Homelab Setup: Two Is Better than One (DNS Failover)

At home, I run two Raspberry Pi’s with Pi-hole installed on each. Pi-hole1 is primary, while Pi-hole2 is fail-over. This setup uses rules specified in my MikroTik router (model: CCR1009-7G-1C-1S+) that detects when Pi-hole1 is offline. When Pi-hole1 is offline the router immediately clears the routing table for traffic going to Pi-hole1 and redirects all new traffic to Pi-hole2, until Pi-hole1 is no longer offline. In addition, all DNS traffic is always routed through one of the two Pi-holes. Google devices, such as Google Chromecast and some Android devices have Google’s DNS (8.8.8.8 etc.) hard-programmed into the software and in many cases the DNS address cannot be modified. It is good practice to setup NAT forwarding rules to redirect all traffic to the Pi-hole that is not already destined to the Pi-hole over DNS port 53. Doing this, will also ensure that users on the network do not bypass the Pi-hole’s security by entering in their own static address on their device.

There may be a time when you will want a device to bypass the Pi-hole, if this is the case, then (if your router supports it) an address/group list of some kind will need to be created and populated with the IP of the devices/clients you would like to have bypass the DNS redirection to the Pi-hole. MikroTik routers support Address Lists, which in this case is quite easy to implement. For MikroTik’s, the following rule will ignore the IP addresses of the devices/clients in the “Pi-hole Redirection Ignore” Address List and force all other local  DNS traffic (UDP/TCP over port 53) on the private network that is not destined to the Pi-hole (!10.10.100.2) to be redirected to the Pi-hole (10.10.100.2).

/ip firewall nat
add action=dst-nat chain=dstnat comment="Redirect Private DNS (UDP) - Pi-hole1." dst-address=!10.10.100.2 dst-port=53 in-interface=Bridge-Local log=yes log-prefix="Redirect_Private DNS (UDP)" protocol=udp src-address-list="!Pi-hole DNS Redirection Ignore" to-addresses=10.10.100.2
add action=dst-nat chain=dstnat comment="Redirect Private DNS (TCP) - Pi-hole1." dst-address=!10.10.100.2 dst-port=53 in-interface=Bridge-Local log=yes log-prefix="Redirect_Private DNS (TCP)" protocol=tcp src-address-list="!Pi-hole DNS Redirection Ignore" to-addresses=10.10.100.2

…and depending on your particular network setup. A masquerade rule may be required:

/ip firewall nat
add action=masquerade chain=srcnat comment="Masquerade DNS (UDP) - Pi-hole1." disabled=yes dst-address=10.10.100.2 dst-port=53 log=yes log-prefix="Masq_Private DNS (UDP)" out-interface=Bridge-Local protocol=udp
add action=masquerade chain=srcnat comment="Masquerade DNS (TCP) - Pi-hole1." disabled=yes dst-address=10.10.100.2 dst-port=53 log=yes log-prefix="Masq_Private DNS (TCP)" out-interface=Bridge-Local protocol=tcp

My Homelab Setup: The Hardware

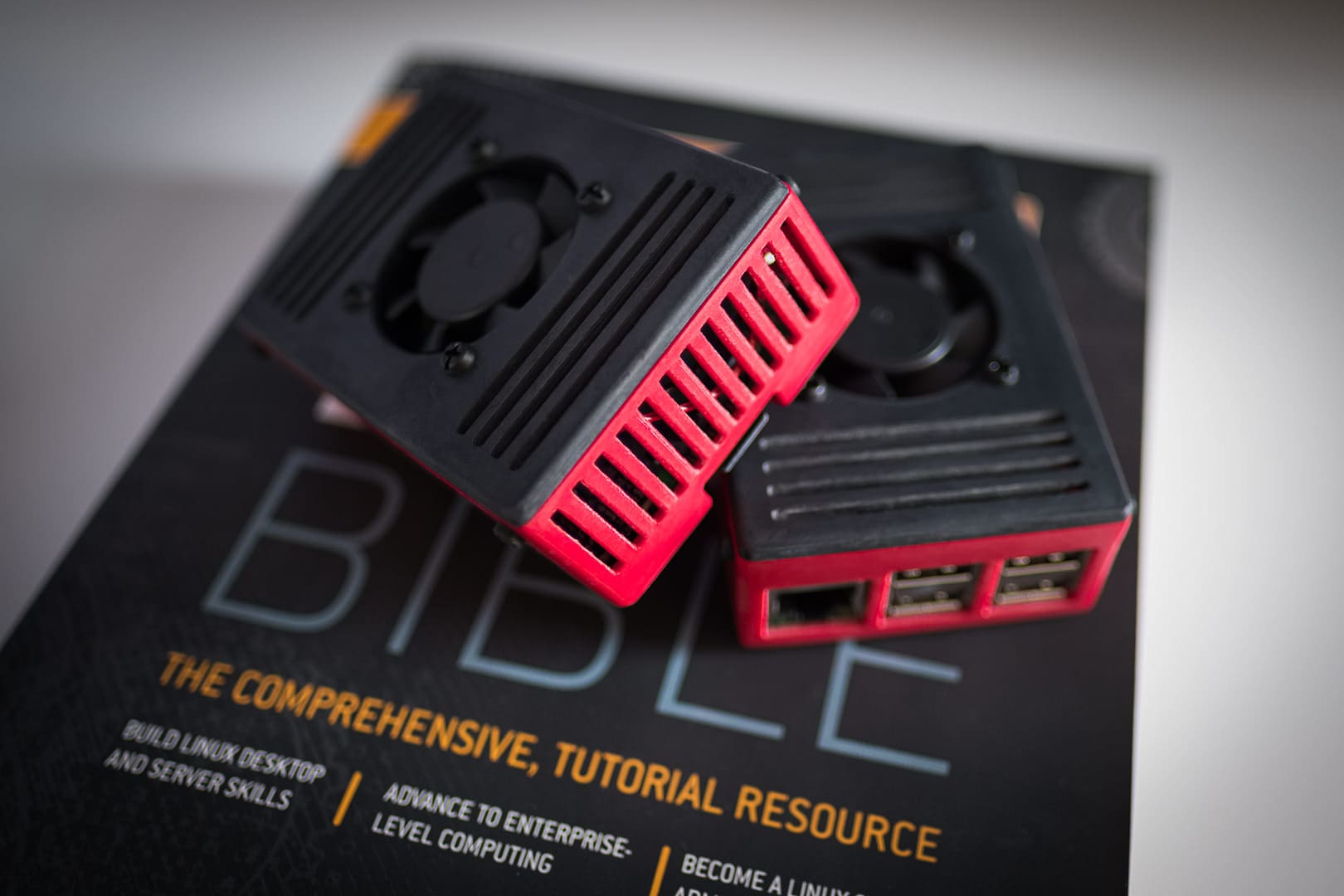

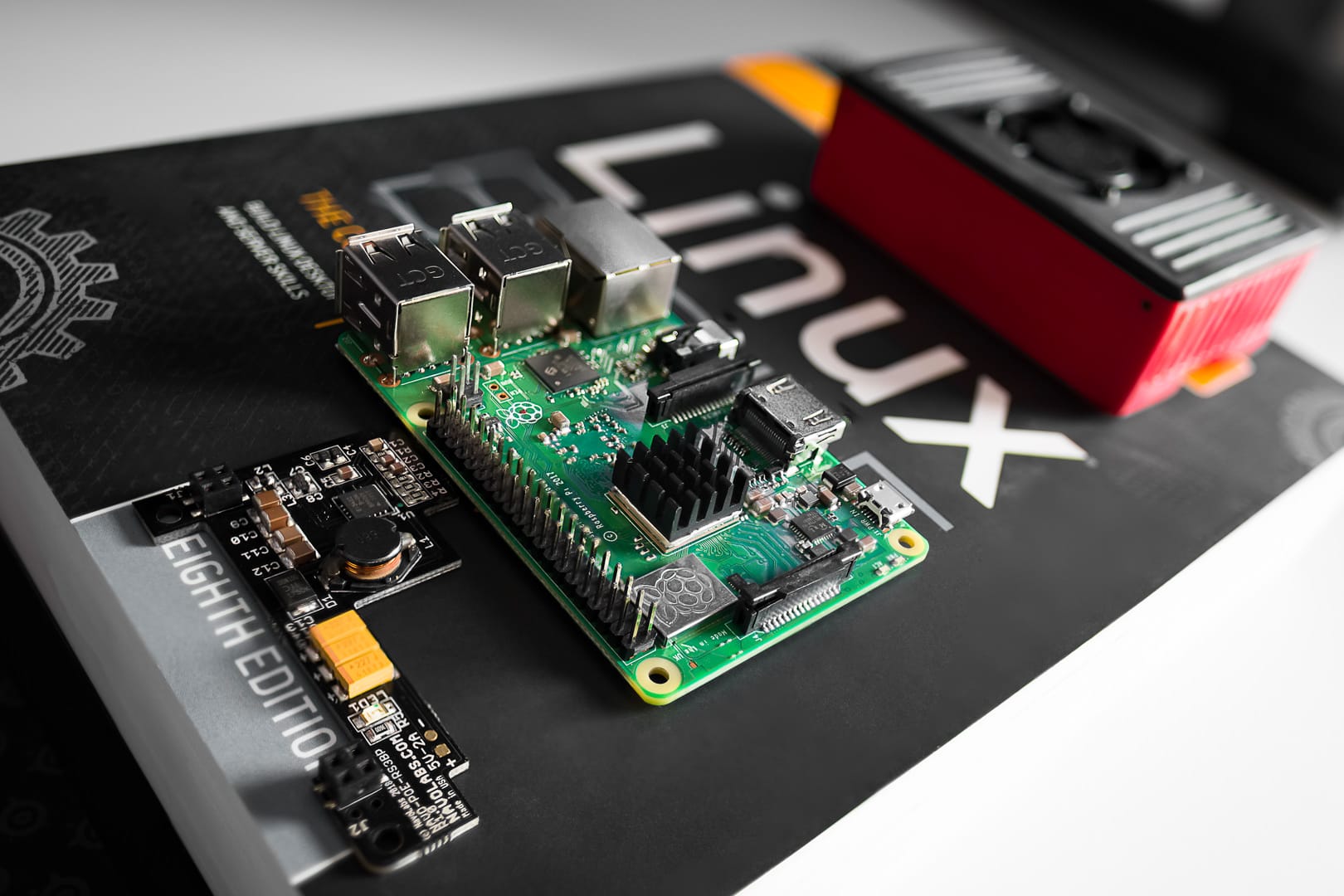

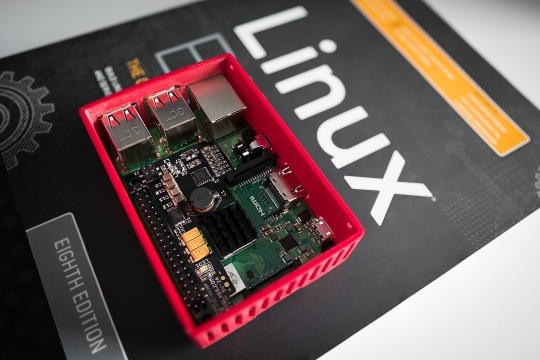

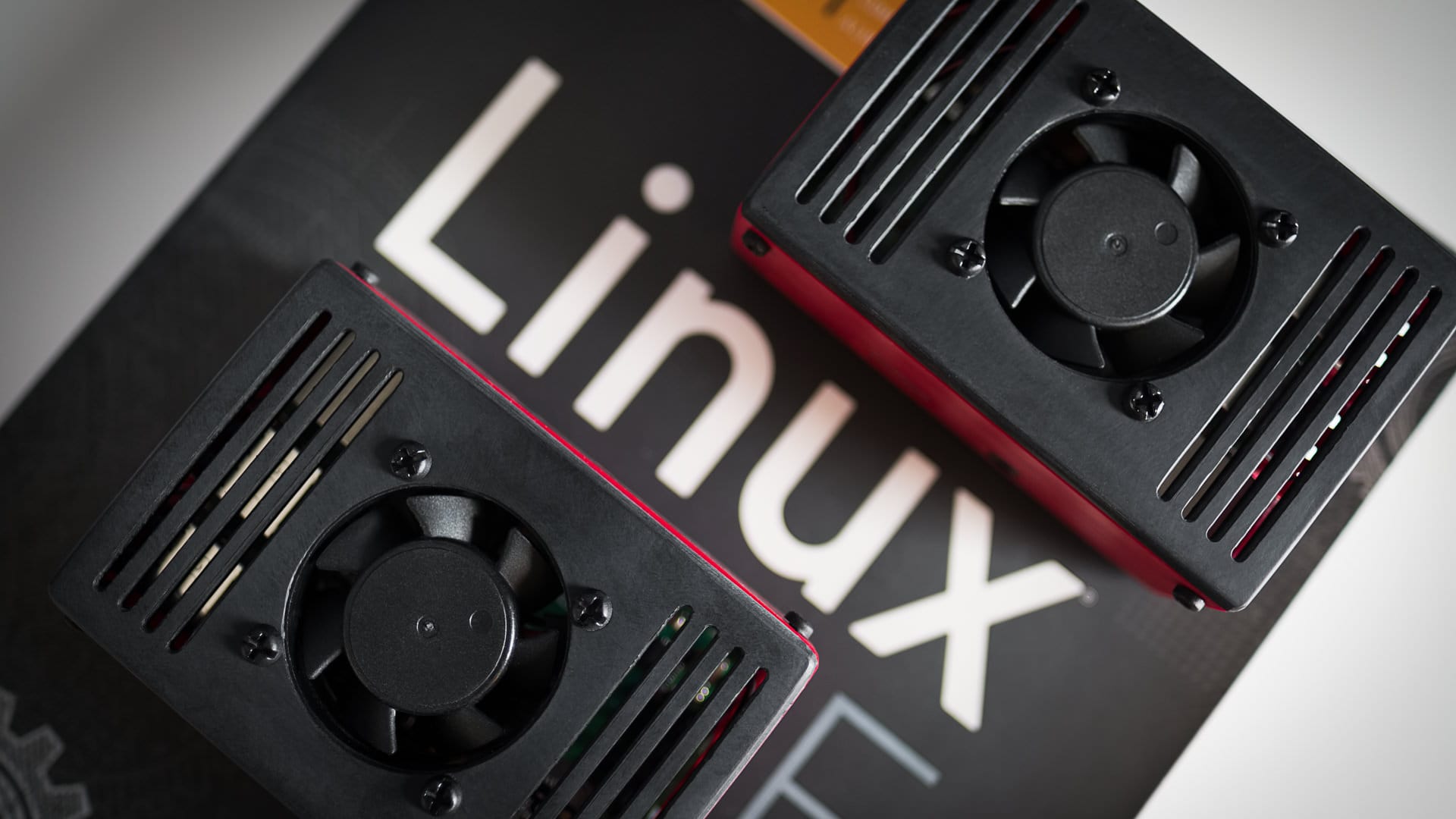

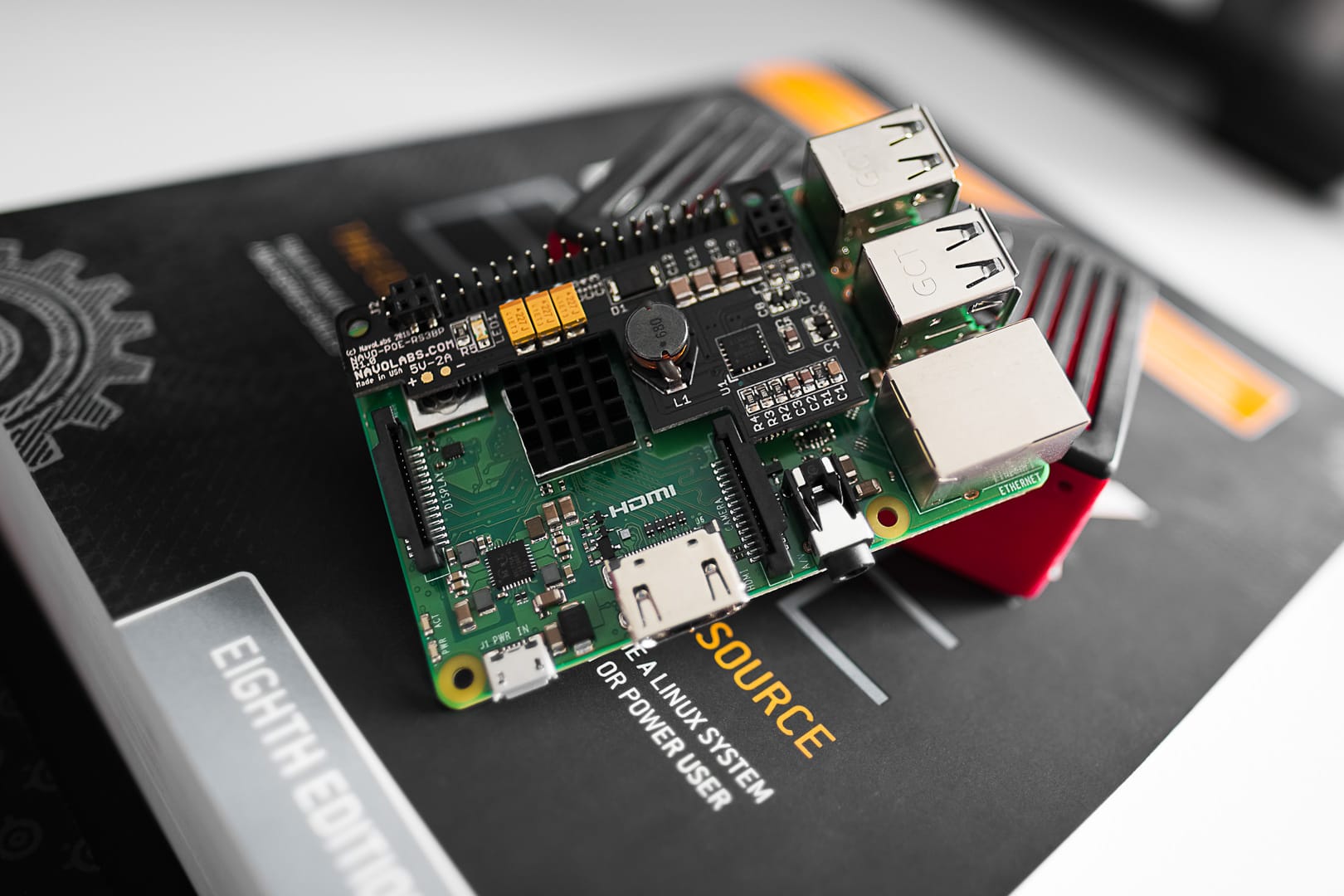

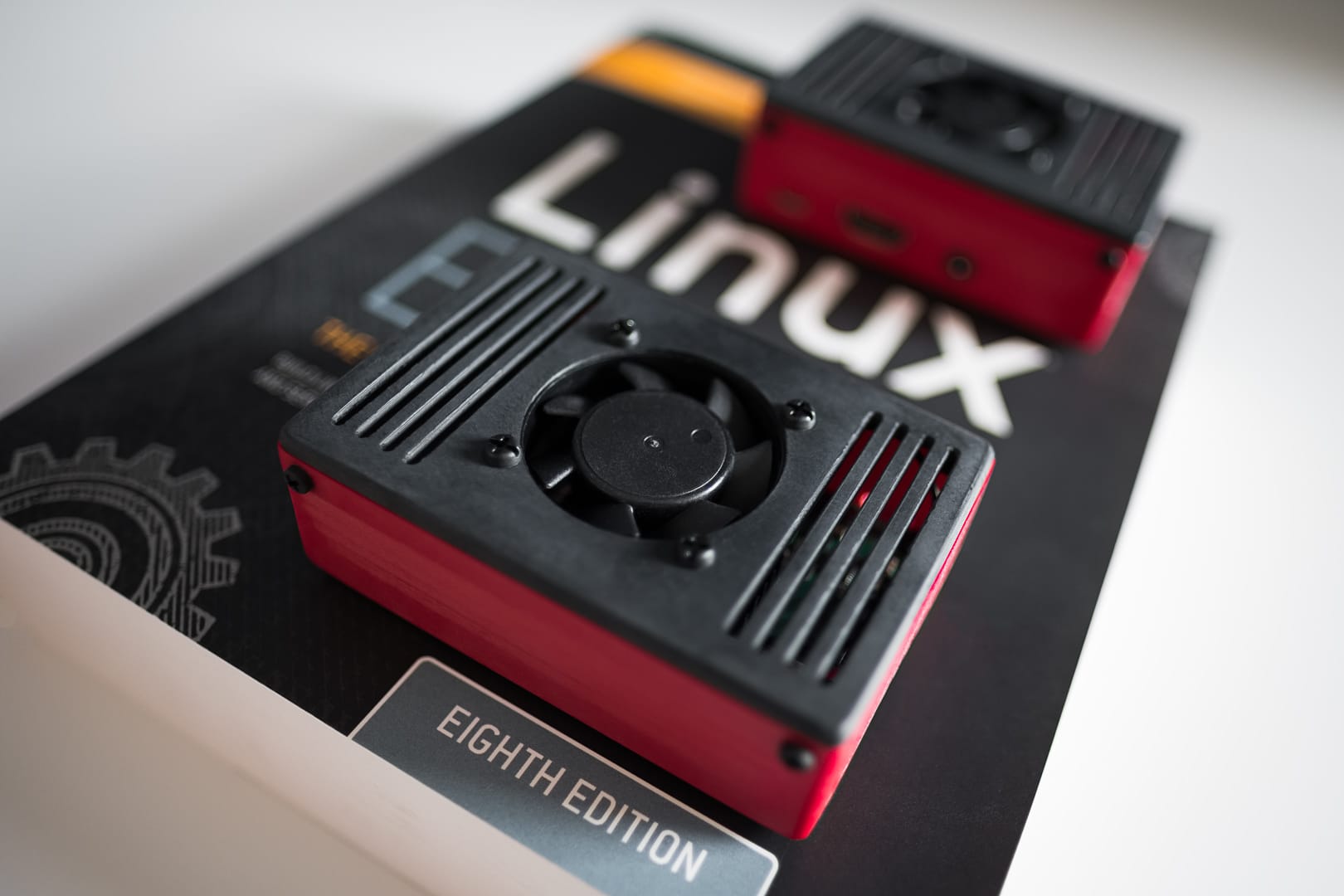

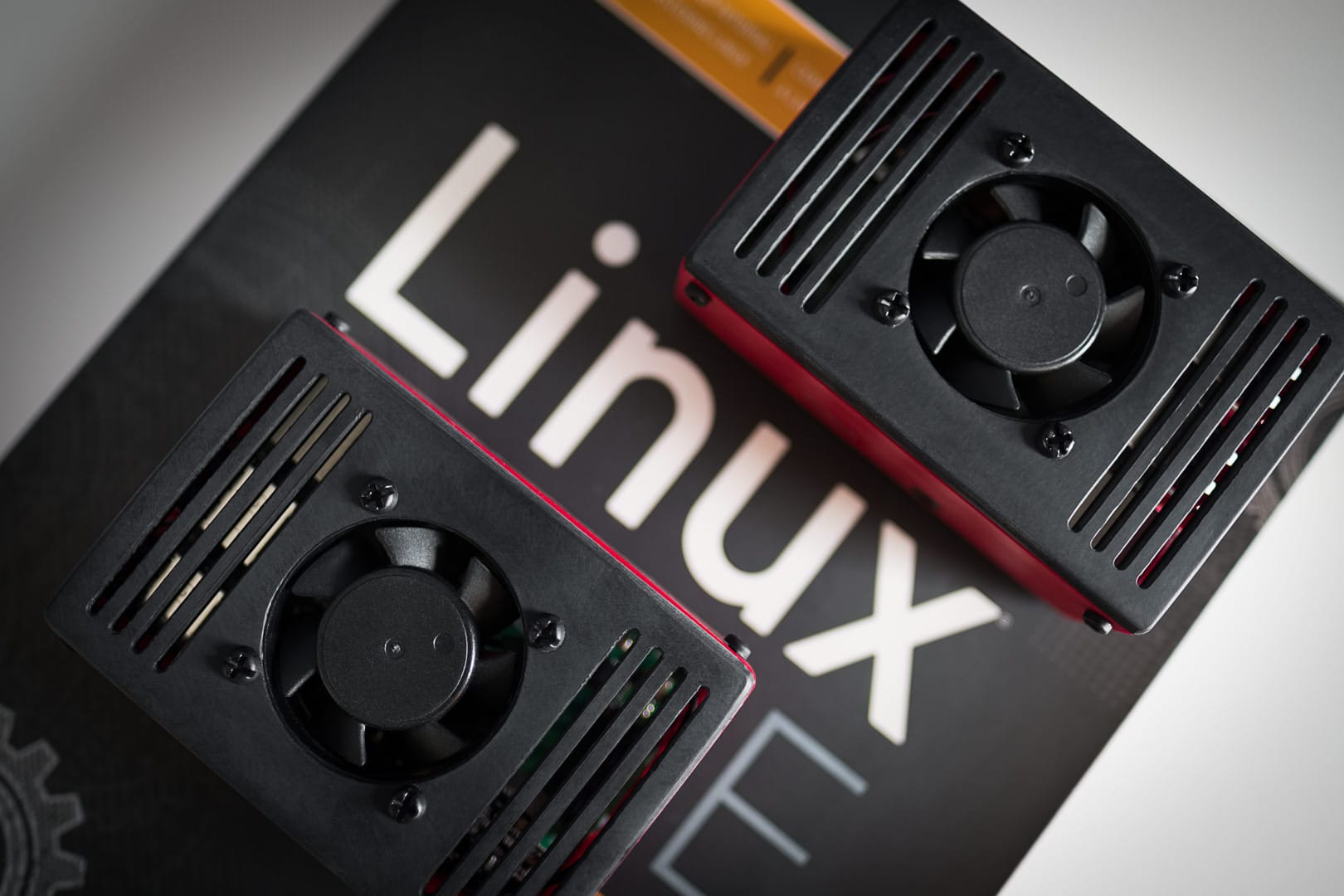

Last but not least is the hardware. I’m currently using two of the following: Raspberry Pi 3 B+ w/ NovaLabs POE Hat for Power Over Ethernet via Unifi POE Switch. These components are  mounted in a custom 3D printed Raspberry Pi ventilated case /w a 40mm top mounted fan for cooling and black nylon nuts/bolts to complete the build.

6 thoughts on “Homelab: Raspberry Pi and Pi-hole”

    1. Marthur

      Hello Mark,

      In addition to the default lists, I use the following:

      https://hosts-file.net/grm.txt
      https://reddestdream.github.io/Projects/MinimalHosts/etc/MinimalHostsBlocker/minimalhosts
      https://raw.githubusercontent.com/StevenBlack/hosts/master/data/KADhosts/hosts
      https://raw.githubusercontent.com/StevenBlack/hosts/master/data/add.Spam/hosts
      https://v.firebog.net/hosts/static/w3kbl.txt
      https://v.firebog.net/hosts/BillStearns.txt
      https://raw.githubusercontent.com/CHEF-KOCH/BarbBlock-filter-list/master/HOSTS.txt
      https://www.dshield.org/feeds/suspiciousdomains_Low.txt
      https://www.joewein.net/dl/bl/dom-bl-base.txt
      https://raw.githubusercontent.com/matomo-org/referrer-spam-blacklist/master/spammers.txt
      https://hostsfile.org/Downloads/hosts.txt
      https://raw.githubusercontent.com/Dawsey21/Lists/master/main-blacklist.txt
      https://raw.githubusercontent.com/vokins/yhosts/master/hosts
      https://hostsfile.mine.nu/hosts0.txt
      https://v.firebog.net/hosts/Kowabit.txt
      https://adblock.mahakala.is
      https://adaway.org/hosts.txt
      https://v.firebog.net/hosts/AdguardDNS.txt
      https://v.firebog.net/hosts/Easylist.txt
      https://raw.githubusercontent.com/CHEF-KOCH/Spotify-Ad-free/master/Spotifynulled.txt
      https://pgl.yoyo.org/adservers/serverlist.php?hostformat=hosts;showintro=0
      https://raw.githubusercontent.com/StevenBlack/hosts/master/data/UncheckyAds/hosts
      https://v.firebog.net/hosts/Easyprivacy.txt
      https://v.firebog.net/hosts/Prigent-Ads.txt
      https://raw.githubusercontent.com/quidsup/notrack/master/trackers.txt
      https://raw.githubusercontent.com/StevenBlack/hosts/master/data/add.2o7Net/hosts
      https://raw.githubusercontent.com/crazy-max/WindowsSpyBlocker/master/data/hosts/spy.txt
      https://v.firebog.net/hosts/Airelle-trc.txt
      https://raw.githubusercontent.com/CHEF-KOCH/Canvas-Font-Fingerprinting-pages/master/Canvas.txt
      https://raw.githubusercontent.com/CHEF-KOCH/WebRTC-tracking/master/WebRTC.txt
      https://raw.githubusercontent.com/CHEF-KOCH/Audio-fingerprint-pages/master/AudioFp.txt
      https://raw.githubusercontent.com/CHEF-KOCH/Canvas-fingerprinting-pages/master/Canvas.txt
      https://raw.githubusercontent.com/Perflyst/PiHoleBlocklist/master/android-tracking.txt
      https://raw.githubusercontent.com/Perflyst/PiHoleBlocklist/master/SmartTV.txt
      https://s3.amazonaws.com/lists.disconnect.me/simple_malvertising.txt
      https://hosts-file.net/exp.txt
      https://hosts-file.net/emd.txt
      https://hosts-file.net/psh.txt
      https://mirror.cedia.org.ec/malwaredomains/immortal_domains.txt
      https://www.malwaredomainlist.com/hostslist/hosts.txt
      https://bitbucket.org/ethanr/dns-blacklists/raw/8575c9f96e5b4a1308f2f12394abd86d0927a4a0/bad_lists/Mandiant_APT1_Report_Appendix_D.txt
      https://v.firebog.net/hosts/Prigent-Malware.txt
      https://v.firebog.net/hosts/Prigent-Phishing.txt
      https://raw.githubusercontent.com/quidsup/notrack/master/malicious-sites.txt
      https://ransomwaretracker.abuse.ch/downloads/RW_DOMBL.txt
      https://v.firebog.net/hosts/Shalla-mal.txt
      https://raw.githubusercontent.com/StevenBlack/hosts/master/data/add.Risk/hosts
      https://v.firebog.net/hosts/Airelle-hrsk.txt
      http://someonewhocares.org/hosts/hosts
      https://hosts-file.net/ad_servers.txt
      http://hosts-file.net/hjk.txt
      http://hosts-file.net/pup.txt

      The majority of these lists can be found here:

      https://firebog.net/

      Reply
  2. Richard Ochoa

    Greetings Marthur, excellent your rules to use the Router in combination with the Pi-hole, they worked very well thank you very much.
    You think you could share the rules you use in your Mikrotik to make the failover work with the two Pi-Hole, I wish I could have the redundancy mentioned in my house, and I’m new to Mikrotik’s world.
    Thanks,
    Richard

    Reply
